IBEKO POWER AB 公司位于瑞典，專業致力于新一代電力測試設備的研發和制造，所有產品均采用更先進的技術和工藝制造?！癉V- power”是其商標，該系列產品是由前“Programma”公司的一組工程師與ABB 公司共同研發的。我司成立于2000年，由一群電力電子技術領域...[查看更多]
CAT *系列斷路器分析儀和計時器是獨立式或由 PC 控制的數字儀器，用于斷路器狀態評估。該系列能記錄高壓和中壓斷路器運動部件的分閘與合閘線圈電流圖以及位移情況 。定時通道可記錄電弧觸頭、電阻觸頭和輔助觸頭的閉合與斷開情況，主觸頭通道還可測量預插入電阻（若斷路器中存在）的電阻值 。此外，主觸頭定時通道能測量雙側接地（BSG）的空氣絕緣變電站（AIS）斷路器的主電弧觸頭操作時間。

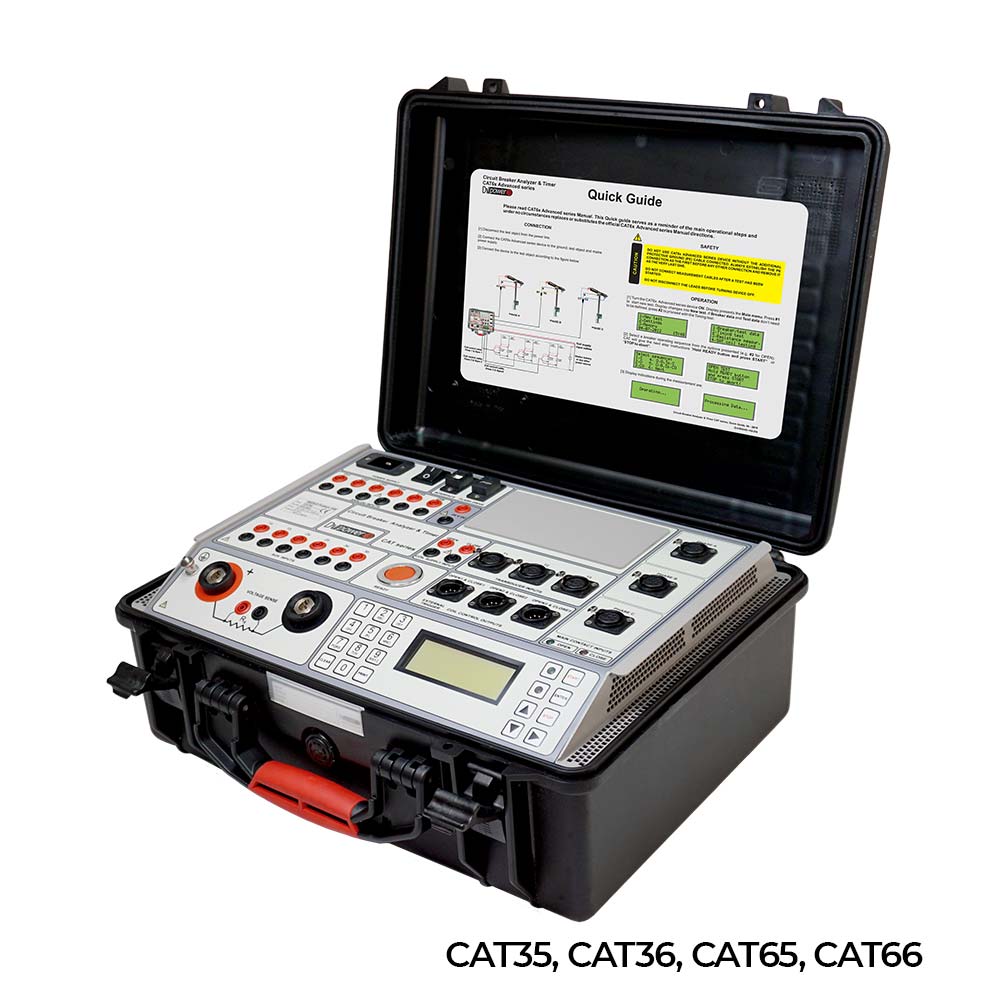

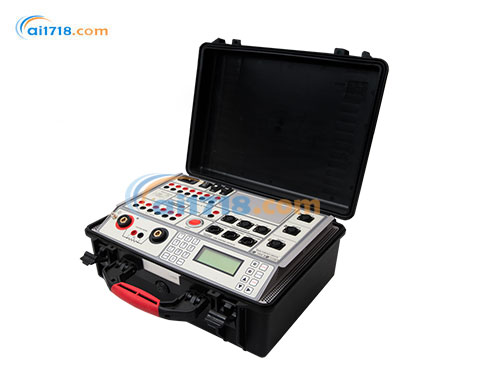

CAT65斷路器分析儀和計時器特點
電源輸入：90 - 264V AC；50Hz - 60Hz。
PC 通信接口：USB 接口，用于與 PC 進行數據傳輸和控制。
閃存驅動器：可將測試結果直接下載到 USB 存儲棒。
主觸頭輸入：用于主觸頭和預插入電阻觸頭的定時測量，以及預插入電阻的電阻測量。
模擬通道輸入：測量相關模擬信號的電壓。
電流鉗電壓輸出：為電流鉗提供 24V 電壓輸出。
線圈電源輸入：分別為分閘和合閘線圈控制提供電壓輸入。
運動傳感器輸入：測量斷路器運動部件的位移。
輔助輸入：用于干濕輔助觸頭的定時測量。
準備按鈕：使儀器準備好開始測試。
線圈控制輸出和外部觸發輸入：用于操作斷路器的分閘和合閘線圈，或?qū)崿F(xiàn)外部觸發功能。
斷路器狀態指示燈：指示斷路器的合閘或分閘位置。
微型歐姆表：內置微型歐姆表（*大直流電流 500A），用于靜態和動態接觸電阻測量（CAT64A 和 CAT124A 型號無此功能）。
字母數字鍵盤：用于輸入斷路器數據、測試數據和控制功能。
LCD 顯示屏：20 字符 ×4 行，帶背光，在強光下也能清晰可見。
CAT65斷路器分析儀和計時器應用：
可進行對所有斷路器的應用程序列表：
主要接觸和合閘電阻，定時通道
6
輔助觸點定時通道
6
線圈控制
YES
線圈電流測量通道
4
模擬輸入通道
4
傳感器輸入通道
3
熱敏打印機（內置）
可選
*次跳閘測試
YES

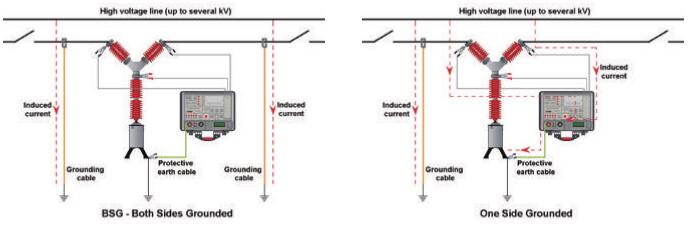

雙邊接地
YES
微歐姆計
NO

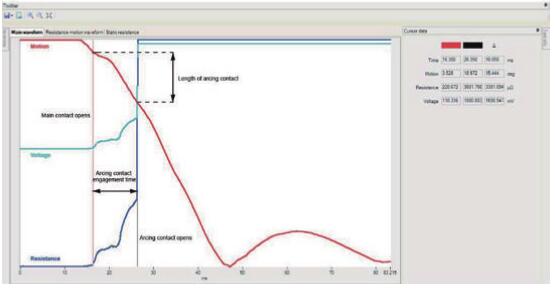

動態電阻測試
NO
CT去磁
NO
| CAT65訂購信息 | |||||||
| Instrument | Article No | ||||||
| Circuit Breaker Analyzer & Timer CAT35 | CAT3500-N-01 | ||||||
| Circuit Breaker Analyzer & Timer CAT36 | CAT3600-N-01 | ||||||
| Circuit Breaker Analyzer & Timer CAT64A | CAT64A0-N-01 | ||||||
| Circuit Breaker Analyzer & Timer CAT65 | CAT6500-N-01 | ||||||
| Circuit Breaker Analyzer & Timer CAT66 | CAT6600-N-01 | ||||||
| Circuit Breaker Analyzer & Timer CAT124A | CAT124A-N-01 | ||||||
| Circuit Breaker Analyzer & Timer CAT125 | CAT1250-N-01 | ||||||
| Circuit Breaker Analyzer & Timer CAT126 | CAT1260-N-01 | ||||||
| Included accessories | ||||||
| Windows based DV-Win PC software including USB cable | ||||||
| Mains power cable | ||||||
| Ground (PE) cable | ||||||
| Plastic transport case |
| Standard accessories | Article No | ||||||
| Main contact cables | |||||||
| Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT35, CAT36) | CM-05-34MXST | ||||||
| Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT64A, CAT65, CAT66) | CM-05-65MXST | ||||||
| Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT124A, CAT125, CAT126) | CM-05- 12MXST | ||||||
| Main contact cables extension | |||||||
| Main contact cables extension 10 m (32.8 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66) | E3- 10-65MXFX | ||||||
| Main contact cables extension 10 m (32.8 ft) (for CAT124A, CAT125, CAT126) | E6- 10- 12MXFX | ||||||
| Control cabinet cables | |||||||
|
Coil control cable set 5 m (16.4 ft) with banana plugs (Single-pole control -6 coil channels) |
CO-05-6BC5B1 | ||||||
| Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (red) (x 6) | JCR- 15-2REBP | ||||||
| Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (black) (x 6) | JCB- 15-2REBP | ||||||
| Test probe with grip jaws (black) (x 3) | TESTPR-GJ-B0 | ||||||
| Test probe with grip jaws (red) (x 3) | TESTPR-GJ-R0 | ||||||
| Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs | CS-05-02BPBP | ||||||
| Auxiliary contacts cable set 12 x 5 m (16.4 ft) with banana plugs | AX-05-02BPBP | ||||||
| Analog channels cable set 12 x 5 m (16.4 ft) with banana plugs | AN-05-02BPBP | ||||||
| Current cables | |||||||
|
Current cables 2 x 10 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126) |
C2- 10-50VMB3 | ||||||
|
Current cables 2 x 10 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125) |
C2- 10-25VMB1 | ||||||
| Sense cables | |||||||
|
Sense cables 2 x 10 m (32.8 ft) with alligator clamps (for CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126) |
S2- 10-02BPA1 | ||||||
| Cable cases | |||||||
| Cable plastic case - large size (x 2) | CABLE-CAS-03 | ||||||
| Optional accessories and features | Article No | |||||
|
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT3x Advanced series (3 channels - one break per phase) (available with CAT35 and CAT36) |
BSG-CATII-00 | |||||
|
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT6x and CAT12x Advanced series (6 channels - two breaks per phase) (available with CAT65, CAT66, CAT125 and CAT126) |
BSG-CATII-01 | |||||
|
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Dead Tank Circuit Breaker for CAT Advanced series (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126) |
BSG-CATDTB-0 | |||||
| BSG on GIS feature for CAT Advanced series (available with CAT36, CAT66 and CAT126) | BSG-CATGIS-0 | |||||
| Current cables with branch connectors 2 x (3 x 5 m, 16 mm2) with SCT clamps | C6BC-05-16GMST | |||||
| Extension cables 2 x 5 m 50 mm2 | E2-05-50VMVF | |||||
| AC Current clamp 1 A / 1 V and cable 5 m with banana plugs | CACL-ACBP-05 | |||||
|
Built-in high precision measurement module (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126) |
RMO-HPMM-DG0 | |||||
| Current clamp 30/300 A power supplied from the instrument with adapter 5 m (16.4 ft) | CACL-0300-07 | |||||
| Current clamp 30/300 A with internal battery supply and extension 5 m (16.4 ft) | CACL-0300-08 | |||||
| Thermal printer 112 mm (4.4 inch) (built-in) | PRINT- 112-01 | |||||
| Thermal paper roll | PRINT- 112-RO | |||||
| Cable plastic case with wheels - large size | CABLE-CAS-W3 | |||||
| Control cabinet cables | |||||||
| Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels) | CO- 10-6BC5B1 | ||||||
| Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels) | CO- 15-6BC5B1 | ||||||
| Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels) | CO-05-00C5B1 | ||||||
| Coil control cable 10 m with banana plugs (Three-pole control - 2 coil channels) | CO- 10-00C5B1 | ||||||
| Coil control cable 15 m with banana plugs (Three-pole control - 2 coil channels) | CO- 15-00C5B1 | ||||||
| Coil supply cable set 4 x 2 m 2,5 mm2 (6.5 ft, 13 AWG) with banana plugs | CS-02-02BPBP | ||||||
| Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs | CS-05-02BPBP | ||||||
| Coil supply cable set 4 x 10 m 2,5 mm2 (32.8 ft, 13 AWG) with banana plugs | CS- 10-02BPBP | ||||||
| Coil supply cable set 2 x 2 m 2,5 mm2 with banana plugs | C2-02-02BPBP | ||||||
| Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs | C2-05-02BPBP | ||||||
| Coil supply cable set 2 x 10 m 2,5 mm2 with banana plugs | C2- 10-02BPBP | ||||||
| Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (black) | JCB- 15-2BPBP | ||||||
| Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (red) | JCR- 15-2BPBP | ||||||
| Auxiliary contacts cable set 12 x 5 m with banana plugs | AX-05-02BPBP | ||||||
| Auxiliary contacts cable set 12 x 10 m with banana plugs | AX- 10-02BPBP | ||||||
| Auxiliary contacts cable set 12 x 15 m with banana plugs | AX- 15-02BPBP | ||||||
| Analog channels cable set 12 x 5 m with banana plugs | AN-05-02BPBP | ||||||
| Analog channels cable set 12 x 10 m with banana plugs | AN- 10-02BPBP | ||||||
| Analog channels cable set 12 x 15 m with banana plugs | AN- 15-02BPBP | ||||||
| Main contact cables | |||||||
| Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT35, CAT36) | CM-03-34MXST | ||||||
| Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT64A, CAT65, CAT66) | CM-03-65MXST | ||||||
| Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT124A, CAT125, CAT126) | CM-03- 12MXST | ||||||
| Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT35, CAT36) | CM-03-34MXA2 | ||||||
| Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT35, CAT36) | CM-05-34MXA2 | ||||||
| Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT64A, CAT65, CAT66) | CM-03-65MXA2 | ||||||
| Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT64A, CAT65, CAT66) | CM-05-65MXA2 | ||||||
| Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT124A, CAT125, CAT126) | CM-03- 12MXA2 | ||||||
| Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT124A, CAT125, CAT126) | CM-05- 12MXA2 | ||||||
| Main contact cables extension | |||||||
| Main contact cables Extension 5 m (16.4 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66) | E3-05-65MXFX | ||||||
| Main contact cables Extension 5 m (16.4 ft) (for CAT124A, CAT125, CAT126) | E6-05- 12MXFX | ||||||
| Main contact cables Extension 15 m (49.2 ft) (for CAT35, CAT64A, CAT65, CAT66) | E3- 15-65MXFX | ||||||
| Main contact cables Extension 15 m (49.2 ft) (for CAT124A, CAT125, CAT126) | E6- 15- 12MXFX | ||||||
| Current cables | |||||||
|
Current cables 2 x 5 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126) |
C2-05-50VMB3 | ||||||
|
Current cables 2 x 15 m 70 mm2 (49.2 ft, 00 AWG) with battery clamps (for CAT36, CAT66 and CAT126) |
C2- 15-70VMB3 | ||||||
|
Current cables 2 x 5 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125) |
C2-05-25VMB1 | ||||||
|
Current cables 2 x 15 m 35 mm2 (49.2 ft, 2 AWG) with battery clamps (for CAT35, CAT65 and CAT125) |
C2- 15-35VMB1 | ||||||
| Sense cables | |||||||
| Sense cables 2 x 5 m (32.8 ft) with alligator clamps A2 | S2-05-02BPA2 | ||||||
| Sense cables 2 x 15 m (49.2 ft) with alligator clamps A2 | S2- 15-02BPA2 | ||||||
| Transducers | |||||||
| Digital rotary transducer with 5 m (16.4 ft) connection cable | DRT-250-C605 | ||||||
| Digital rotary transducer with 10 m (32.8 ft) connection cable | DRT-250-C610 | ||||||
| Digital rotary transducer with 5 m (16.4 ft) connection cable with accessories | DRT-SET-0005 | ||||||
| Digital rotary transducer with 10 m (32.8 ft) connection cable with accessories | DRT-SET-0010 | ||||||
|
Linear analog transducer (TLH) 150 mm (5.9 in) with 5 m (16.4 ft) connection cable and linear transducer rod |
LAT- 150-C305 | ||||||
|
Linear analog transducer (TLH) 225 mm (8.85 in) with 5 m (16.4 ft) connection cable and linear transducer rod |
LAT-225-C305 | ||||||
|
Linear analog transducer (TLH) 300 mm (11.8 in) with 5 m (16.4 ft) connection cable and linear transducer rod |
LAT-300-C305 | ||||||
|
Linear analog transducer (TLH) 500 mm (19.68 in) with 5 m (16.4 ft) connection cable and linear transducer rod |
LAT-500-C305 | ||||||
| Three phase digital rotary transducer kit (with 5 m connection cable) | TPH-DRTS-005 | ||||||
| Online first trip test kit - Three-pole control for CAT Advanced series | ONFTT-KIT-01 | ||||||
| Online first trip test kit - Single-pole control for CAT Advanced series | ONFTT-KIT-00 | ||||||
| Transducer mounting kits | |||||||
| Universal transducer mounting kit | UTM-KIT-0000 | ||||||
| Universal transducer mounting kit - extended version | UTM-KIT-0001 | ||||||
| Doble transducer adapter | DTA-BOX-C002 | ||||||
| Big clamping base | UTM-LCB-0080 | ||||||
| Small clamping base | UTM-SCB-0030 | ||||||
| Articulated arm | UTM-AA-0288 | ||||||
| Carrier (L profile) for digital rotary transducer | DRT-CRL-0090 | ||||||
| Carrier for analog rotary transducer | ART-CRL-0000 | ||||||
| Linear transducer rod | LAT-ROD-0000 | ||||||
| Bellow coupling (M6) | DRT-COUP-003 | ||||||
| Bellow coupling (M10) | DRT-COUP-001 | ||||||
| Magnet | UTM-MAG-0800 | ||||||
| Four mechanical adapters 10 mm (M6, M8, M10, M12) | DRT-MADP-004 | ||||||
| Four mechanical adapters 6 mm (M6, M8, M10, M12) | DRT-MADP-604 | ||||||
| CAT65斷路器分析儀和計時器規格 | |
| 電源供應 |
|
| 根據 IEC/EN60320-1; UL498, CSA 22.2連接 |
|
| 電源 | 90 V - 264 V AC |
| 頻率 | 50/60 Hz |
| I輸入功率 | 3900 VA |
| 保險絲15 A / 250 V，快速反應，但不是用戶可更換 |
|
| 適用標準 |
|
| 安裝/過電壓 | 第二類 |
| 污染 | 2度 |
| 安全 |
LVD 2014 / 35 /歐盟（CE符合） 標準EN 61010-1 |
| EMC |
指令2014 / 30 /歐盟（CE符合標準EN 61326-1:2006） |
| CAN/CSA-C22.2 No. 61010-1 |
|
| 環境條件 |
|
| 操作溫度 | -10 oC - + 55 oC / 14 oF - +131 oF |
| 存儲和運輸 | -40 oC - + 70oC / -40 oF - +158 oF |
| 濕度 | 度5% - 95%相對濕度 |
| 尺寸/重量 |
|
| 尺寸(寬 x 高 x 深): |
480 mm x 197 mm x 395 mm 18.89 in x 7.75 in x 15.55 in |
| 重量 | 12,9 kg / 28.4 lbs |
|
